1 / 8SKU: IRX-SBCP
High-efficiency solar centrifugal surface pump designed for agricultural irrigation, water transfer and farm water supply. Powered by a permanent-magnet brushless DC motor with MPPT control, the series delivers flow rates up to 60 m³/h and maximum heads up to 25 m, with DC and AC/DC system options a
Material
SS
Standards
ISO9261, ISO, GB
INQUIRY FOR:

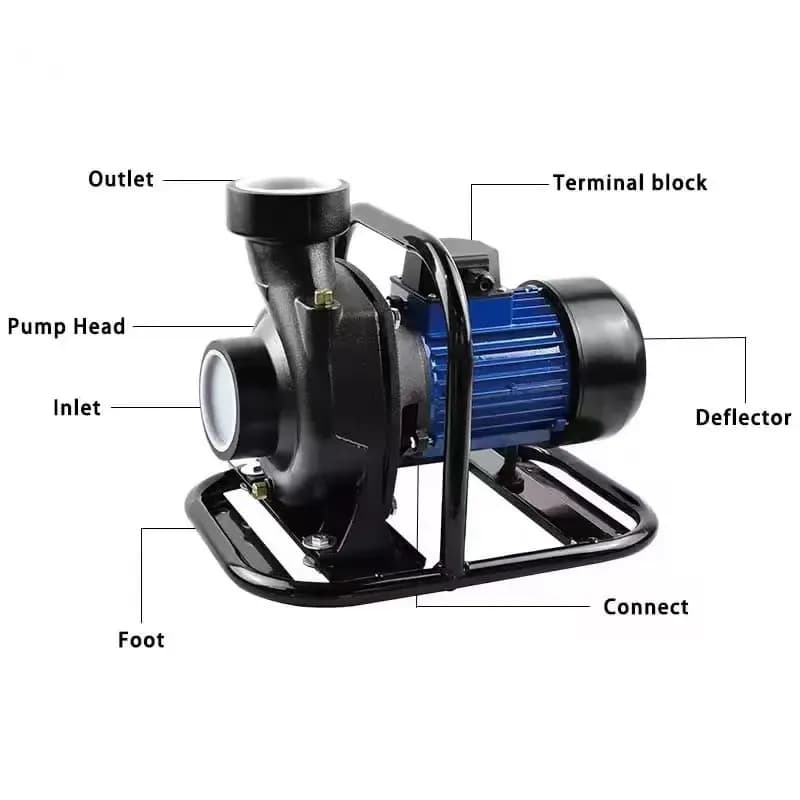

Solar DC & AC/DC Brushless Centrifugal Surface Water Pump
The IrriNex Solar Brushless Centrifugal Water Pump is designed for efficient surface-water pumping in agricultural irrigation and water-transfer applications. It combines a permanent-magnet brushless DC motor with MPPT control technology to make efficient use of available solar power and provide reliable water delivery in locations where conventional grid electricity may be limited.
With multiple models ranging from 550 W to 2200 W, the series covers water-flow requirements from 6 to 60 m³/h and maximum heads of up to 25 meters, making it suitable for farms, irrigation systems, reservoirs, water tanks, ponds and other surface-water sources.
Permanent-magnet brushless DC motor
MPPT solar pump control technology
Available for DC and AC/DC solar pumping systems
Maximum flow rate up to 60 m³/h
Maximum head up to 25 m
Power range from 550 W to 2200 W
Outlet sizes from 1" to 4"
Iron and aluminum pump construction
Iron/aluminum impeller options
Suitable for water temperatures up to 35°C
Multiple voltage and performance configurations
Optional intelligent pump controller
Designed for continuous agricultural water-transfer and irrigation applications
This solar centrifugal pump series is suitable for:
Agricultural irrigation
Drip and sprinkler irrigation water supply
Farm water transfer
Reservoir and water tank filling
Pond and surface-water pumping
Livestock water supply
Greenhouse irrigation
Remote farms without reliable grid electricity

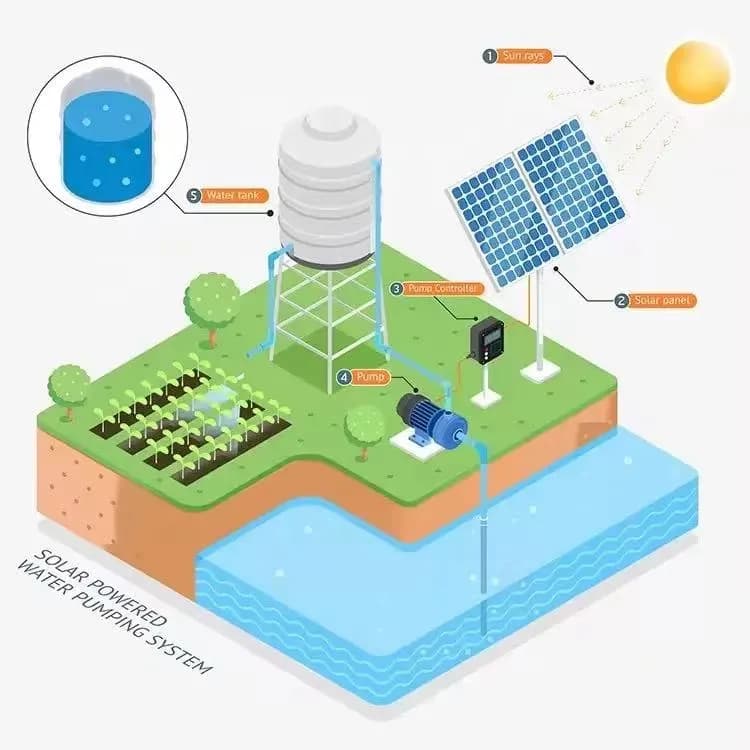

Solar panels convert sunlight into DC electrical power. The solar pump controller regulates and optimizes the incoming power before supplying it to the brushless pump motor. The system can then pump water directly during daylight hours or be integrated into a suitable solar pumping configuration according to the project requirements.
The MPPT controller helps optimize available solar energy under changing sunlight conditions while providing operating protection for the pump system.
Model | Voltage | Power | Max. Flow | Max. Head | Inlet / Outlet | Working Voltage Range |
|---|---|---|---|---|---|---|
25DHF6-20-48-550 | 48 V | 550 W | 6 m³/h | 20 m | 1" × 1" | 48–96 V |
25DHF8-25-72-750 | 72 V | 750 W | 8 m³/h | 25 m | 1" × 1" | 72–150 V |
40DHF15-15-72-750 | 72 V | 750 W | 15 m³/h | 15 m | 1.5" × 1.5" | 72–150 V |
50DHF25-15-72-750 | 72 V | 750 W | 25 m³/h | 15 m | 2" × 2" | 72–150 V |
50DHF35-15-110-1100 | 110 V | 1100 W | 35 m³/h | 15 m | 2" × 2" | 72–150 V |
80DHF50-15-110-1500 | 110 V | 1500 W | 50 m³/h | 15 m | 3" × 3" | 72–150 V |
100DHF60-10-150-2200 | 150 V | 2200 W | 60 m³/h | 10 m | 4" × 4" | 96–200 V |
Maximum liquid temperature: 35°C
